| IP Kamera D24 - Dome IP kamera |
|
Uklapa se . Proveri

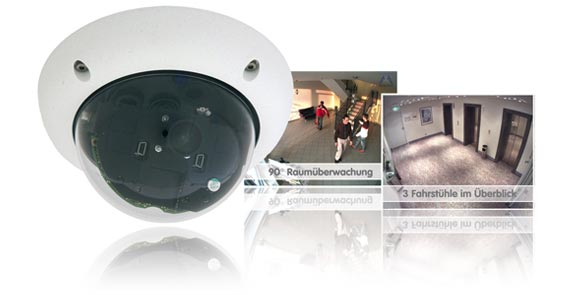

Neupadljiv video nadzor sa state-of-the-art tehnologijom. D24 FixDomeIP kamera iz Mobotix-ove ponude prilagođava se i najzahtevnijem korisniku. Izmenljiva sočiva, mogućnost različitih opcija montaže i konfiguracije i dodatni vandal set, D24 FixDome izdvaja kao rešenje za nadzor sa neograničeim mogućnostima primene.
Mobotix HiRes IP kamera može da zameni i do 6 analognih kamera

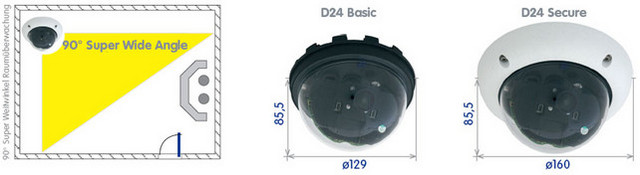

- Atraktivan dizajn sai izmenljivim sočivima od Super širokougaonih (90°) do tele sočiva (15°)
- Brojne opcije za unutrašnju i spoljašnju instalaciju
- Zidni set za dodatne module(beterije,UMTS, WLAN...)
- Integrisan DVR sa HiRes modom snimanja (uključna 4 GB MicroSD kartica)
- Robustan, bez potrebe za održavanjem i otporna na sve vremenske uslove (-30° do +60°C (-22° to +140°F), (IP66))
- Može se nadograditi na interfonski sistem sa Mobotix ExtIO modulom
- Digitalni zum, pan i tilt
*2008/06 • MSRP (Manufacturer's suggested retail prices) • Prices ex works Langmeil, Germany (EXW) • Excluding VAT and any other handling charges • Information subject to change without notice!
| Technical Specifications D24 MonoDome |
|
|---|---|
Models |
Basic, IT, IT-Night, Sec, Sec-Night |
Lenses |
22 to 135 mm format, horizontal angle 90° to 15° |
Sensitivity |
Color: 1 lux (t=1/60 s), 0,05 lux (t=1/1 s) |
Sensor |
1/2“ CMOS, progressive scan |
Max. image resolution |
Color: 2048 x 1536 (3Mega), Black/White: 1280 x 960 (Mega) |
Image format |
2048 x 1536, 1280 x 960, 1024 x 768, 800 x 600, |
Max. frame rate (M-JPEG) |
VGA: 25 fps, TV-PAL: 18 fps, MEGA: 8 fps, 3MEGA: 4 fps |
Max. Video stream (MxPEG) |
VGA: 30 fps, TV-PAL: 30 fps, MEGA: 30 fps, 3MEGA: 20 fps |
Image compression |
MxPEG, M-JPEG, JPG, H.263 (Video-VoIP-Telephony) |
Internal DVR |
MicroSD-Slot (camera-internal video recording up to 32GB) |
External storage |
Directly on NAS and PC/Server without additional recording software |
Software (inclusive) |
Video-Management-Software MxEasy, |
Image processing |
Backlight compensation, automatic white balance, image |
Virtual PTZ |
Digital Pan/Tilt/Zoom, continuous 8x zoom |
Alarm/Events |
Triggering of events by integrated multiple-window motion detection, external signal, temperature sensor, notification over email, FTP, IP-Telephony (VoIP, SIP), visual/acoustic alarm Pre- and post-alarm images |
Audio |
Optional via ExtIO: lip-synchronous audio, two-way speaker, audio recording, video VoIP supported |
Interfaces |
Ethernet 10/100, USB |
Audio/Telephony |
VoIP, SIP, two-way speaker, remote control via DTMF signaling, event notification |
Security |
User-/Group management, HTTPS/SSL, IP address filter, IEEE 802.1x, Intrusion Detection, digital image signature |
Certificates |
BGV C; EMV: DIN 61000, (living environments, industry), EN 50155 (shock, vibration, temperature), FCC part 15B; CE |
Power supply |
Power over Ethernet (IEEE 802.3af): PoE class variable depending on operating mode; power consumption: typ. 3 W; with PoE switch / MOBOTIX PoE adapter |
Operating conditions |
IP65 (DIN EN 60529), -30° bis +60 °C (-22°F to +140°F) |
Dimensions |
Ø x H: 16 x 8,6 cm, Weight: ca. 350 g |
Standard delivery |
Housing (high-resistance composites - PBT-PC), white, shockproof polycarbonate dome transparent, free choice of lenses, mounting parts, allen wrench, patch cable, manual, software, 4 GB MicroSD |
