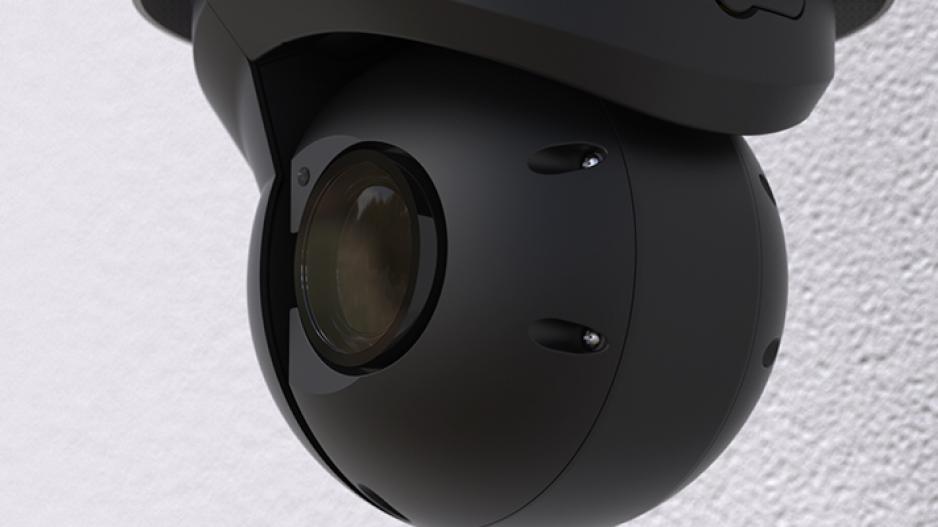

MOBOTIX MOVE SpeedDome SD-340-IR

Uputstvo za rukovanje kamerom

IP PTZ kamere od 3 MegaPixelasa auto-fokus zoom-om 40x

MOBOTIX PTZ kamera za ekstreme. Veoma brza pan/tilt tehnologija sa snažnim optickim zoom-om od 40x sa elektronskom stabilizicajom slike. Slika visoke rezolucije danju i nocu, uz integrisane IC diode velikog dometa. Daje jasan video, cak i na najvecem nivou zuma i pod bilo kojim uslovima osvetljenja. Vrhunska PTZ kamera sa besprekornim i kompletnim asortimanom funkcija kao što su snažan WDR 120 dB.

Kamera snimana MOBOTIX NAS ili Sd karticu i savršeno je integrisana u software Mobotix MxMC.



MOBOTIX MOVE SpeedDome SD-340-IR omogućava korisnicima da pouzdano kontrolišu i detektuju detalje sa udaljenosti do 200m, cak i u uslovima loše osvetljenosti. Tipicne oblasti primene ukljucuju aerodrome, železnicke stanice, parkinge i javna mesta kao što su sportski i maloprodajni objekti.

Mobotix MOVE kamera ima elektonsko Vario socivo koje se može prilagoditi udaljeno ili automatski u slucaju da se promeni fokus. Ugao gledanja i vidno polje se mogu fleksibiln o podešavati. Fokus MOBOTIX MOVE SpeedDome kamere može biti konfigurisan od 2° i 62° u bilo kom trenutku.

  • Vodootporna kamera IP66 sa temperaturnim opsegom od -40 do 55°C
  • Zaštita od mehanickih uticaja IK10
  • Prikaz do 3 H.264/MJPEG strima istovremeno
  • WDR 120 dB
  • Ugao gledanja od 2° i 62°
  • Vario objektiv sa daljinskim zumom i automatskom korekcijom slike, mogucnost manuelnog zumiranja
  • Rezolucija do 3 megapiksela
  • ONVIF profil S/G
  • Opticki zum: 40x



  • Automatsko prebacivanje sa dnevnog u nocni režim rada (IR filter)
  • Integrisane IC diode (do 200m)
  • Mogucnost snimanjana NAS ili integrisanu MicroSD karticu (nije u sklopu opreme)






MOBOTIX MOVE SpeedDome SD-340-IR
MOBOTIX Order Number Mx-SD1A-340-IR
Sensor 		3MP
1/2.8” Progressive CMOS
Effective Pixels H x V = 2065 x 1553 (3MP)
Pixel Size 2.5 µm
Frame Rate (Maximum) H.264: 3MP@30fps (with and without WDR)
MJPEG 1080p@30fps
Lens: 30X Zoom Lens
Minimum Illumination Color
B/W 		0.04 lux
0.002 lux
Lens Zoom Lens
Focal Length
Horizontal (Field of View)
Vertical (Field of View)		 Focus, Zoom, P-Iris, Auto-Iris
F1.6, 4.3 to 170 mm
62° (Wide), 2° (Tele)
49° (Wide), 1° (Tele)
Camera
Day and Night Automatically removable IR-cut Filter
Shutter Time 1 to 1/10K sec.
WDR Yes
EIS Yes
Zoom Optical Zoom, Digital Zoom ready
Settings 		Color, Brightness, Sharpness, Contrast White Balance, Exposure Control 2DNR, 3DNR, NR by Motion Masking, Text Overlay
Corridor Mode 90°, 180°, 270° Rotation
Video Codec
Compression H.264/MJPEG
Streaming Up to 3 individually configurable Streams in H.264/MJPEG Configurable Resolution/Frame Rate/Bandwidth LBR/VBR/ CBR in H.264
Audio Codec
Compression G.711/G.726/AAC/LPCM
Streaming 2-Way
Audio Input Line in
Audio Output Line ou
Network
Interface 10/100 Mbps Ethernet
Security User Authentication/HTTPS/IP Filter/IEEE 802.1x
Supported
Protocols 		ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS
ONVIF Profile S/G conformant
System Integration
Analytics Motion detection/Audio detection
Event Triggers External Input, Analytics, Network Failure Detection, Periodical Event, Manual Trigger
Event Actions External Output Activation Video and Audio Recording to Edge Storage File Upload: FTP, Network Share and Email Notification: HTTP, FTP, Email
General
Casing Metal and Plastic
Power UPoE (Universal Power over Ethernet)
or DC 12 V, 3.25 A or AC 24 V; max 39 W
Connectors RJ45
Alarm in x4, Alarm out x2, Terminal Block
DC12V Terminal Block
AC24V Terminal Block
Audio in Terminal Block
Audio out Terminal Block
CVBS Connector
RS485 Terminal Block
Storage Support for microSD/microSDHC/microSDXC card
Support for Recording to NAS
Protection Class IP66/ IK10
Operating Conditions -40°C to 55°C (-40°F to 131°F) without Heater
10 % to 90 %, no Condensation
Storage Conditions -20°C to 70°C (-4°F to 158°F)
Approvals EMC
Safety
Environment		 CE / FCC
LVD
IP66, I
Dimensions Ø207.4 x 300.4 mm with Sunshield
Weight 3800 g
