IP kamera Q24 - 360° IP kamera O proizvodu  Tehnički detalji  Uputstvo za rukovanje kamerom  Uputstvo za rukovanje softverom

Elegantna, kompaktna i vodootporna IP dome kamera. Zahvaljujući pogledu od 360° kojim pokriva kompletnu prostoriju, panorama funkcijom i „QUAD“ pogledu kojim posmatrate sliku iz četiri različita ugla istovremeno, Q24 može da se nosi sa svim postojećim i novim izazovima.

Photo by MOBOTIX camera with license plate recognition

MxEasy Image correction Digital zoom/pan

Moćne performanse u kompletnom video sistemu...

  • Kompletan panorama prikaz, idealna za kontrolu prilaza
  • „QUAD“ prikaz za prikazivanje 4 različita ugla istovremeno
  • Digitalni kontinualni zum i pan
  • Robustan , bez održavanja i bez mehaničkih pokretnih delova
  • Događajem kontrolisano snimanje direktno na kameru (uključena 4 GB MicroSD kartica)
  • Funkcija alarma, integrisan mikrofon i zvučnici

M22M-Details

* 2008/06 MSRP (Manufacturer's suggested retail prices) Prices ex works Langmeil, Germany (EXW) Excluding VAT and any other handling charges Information subject to change without notice!



Mounting Options

Mounting to a Ceiling or Wall

The MOBOTIX Q24M has been primarily designed to be mounted to either ceilings or walls (in combination with the Wall Mount). The supplied L11 180° lens then allows monitoring the entire room from the bottom to the ceiling. The Q24M can also be mounted directly to a wall without using the wall mount. The cable entry of the Q24M is below the center of the camera's back plate.


Installation Options

On-wall mounting



The On-Wall set can reliably protect external cables if the cables cannot be guided from below the housing but have to be led above the wall. In addition, the On-Wall mount provides ample space for extra modules.

On-wall mounting with 10° incline



This On-Wall set is identical to the regular On-Wall set, except that the mounted camera is inclined by 10 degrees. The incline makes it possible for the camera to deliver the best images even in demanding situations.

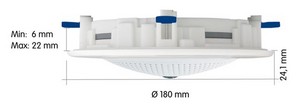

In-ceiling mounting



The In-Ceiling set allows mounting the Q24M cameras in fake ceilings, for example. This type of installation provides optimum protection for the camera and reduces the visible profile to a minimum since the camera only protrudes 24 mm (1 in) from the ceiling.

D22 and Q22 In-Ceiling Set

Vandalism protection



The Vandalism set provides added protection for Q24M cameras. The set consists of a robust stainless steel cover
and a dome made of polycarbonate. A camera equipped with the Vandalism set is perfectly suited for applications
in demanding environments (such as prisons, social hot spots, train stations, etc.).

Wall Mount



The Q24M/D22M Wall Mount is the ideal solution for mounting the Q24M to walls for indoor and outdoor applications.
The camera is absolutely dustproof and resistan against water jets (IP65). The wall mount also covers RJ45 wall outlets and has ample space for additional modules.

Pole Mount



If you would like to mount the MOBOTIX Q24M to a pole, you should consider using the MOBOTIX Pole Mount. This mount can only be used in conjunction with the wall mount. The supplied stainless steel straps allow attaching the mount to poles with diameters between 60 and 180 mm (2.4 to 7.1 in).


Mounting Types Q24

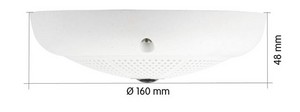

The MOBOTIX Q24M consists of the camera housing (motherboard and lens), the outer shell and the mounting ring.



On-Wall Set



In-Ceiling Set





Vandalism Set





Mounting Instructions

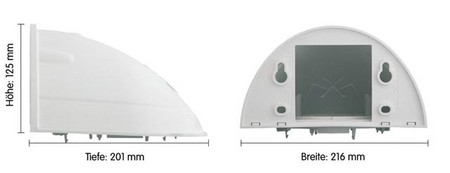

Outdoor Wall Mount

The Q24M/D22M Wall Mount is the ideal solution for mounting the Q24M to walls for outdoor applications.The camera is absolutely weatherproof (IP65). The wall mount has ample space for additional modules (UMTS, WLAN etc.).

The Wall Mount also covers RJ45 wall outlets and also has ample space for additional modules.

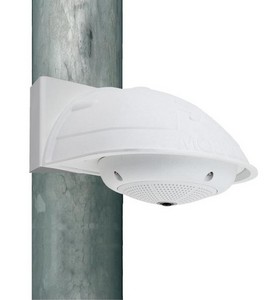

Pole Mount

If you would like to mount the MOBOTIX Q24M to a pole, you should consider using the MOBOTIX Pole Mount. This mount can only be used in conjunction with the wall mount. The supplied stainless steel straps allow attaching the mount to poles with diameters between 60 and 180 mm.

The Pole Mount is made from 3 mm white powdercoated stainless steel and is just as robust and maintenance-free as the outdoor Wall Mount.


Hints for Choosing a Good Mounting Position

In order to get the most out of the MOBOTIX Q24M, you should follow these mounting hints.

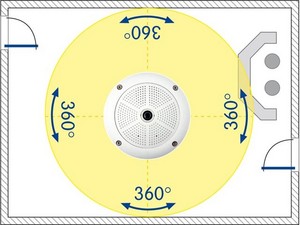

360° Allround View

Thanks to its hemispherical lens, a single Q24M can monitor an entire room right into each of the four corners (360° Allround Surveillance). The camera's ideal position is on the ceiling in the center of the room. Due to its inherent physical and optical properties, the precision of the lens decreases as the distance from the lens grows. This means that the maximum usable image area greatly varies with the purpose of the camera. Rooms with a square floor area of up to approx. 40 m2 (48 yd2) in general allow recognizing details even at the borders of the full image. If you would only like to know if persons enter a room or for monitoring specific objects, rooms with up to 100 m2 (120 yd2) floor area can be monitored using a single Q24M.

Facial Recognition

If the camera is used to detect persons and recognize their faces, the camera should be mounted at heights between 2.8 and 3 m (9.2 to 9.8 ft). Facial recognition up to 1.5 m (5 ft) distance to the object is very good and up to 3 m (9.8 ft) is still sufficient. Persons that are already known can be properly identified up to 5 m (16.4 ft) distance from the camera.

Non-Square Rooms



When viewing a 360° (full) image in the browser, you will notice that the top and bottom of the image is not fully visible, i.e. some image information has been clipped. This is not a fault of the camera, but an intended behavior that aims at achieving the best possible utilization of the image sensor by the camera software. Bearing this in mind, it is advisable to install a Q24M in rectangular rooms so that the arrow marked as OBEN /TOP points towards one of the long sides of the room as shown in the figure.

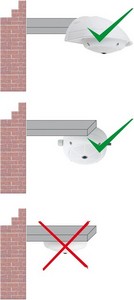

Lowered Mounting or Mounting on Extensions



When mounting the camera in rooms with a high ceiling, it may be advisable tomount the camera in a lower position. This reduces the distance between the camera and the objects that are to be monitored, which in turn increases the recognizability of details. One practical solution would be to install the camera on a base plate attached to a suitable extension (metal tube) that is hanging from the ceiling. The network cable can be hidden from view by running through the interior of the tube. Similar to such a lowered mounting from the ceiling, you can also attach the camera to an extension mounted to a wall to better use the 360° image of the camera (e.g. outside, above a portal). Such an installation would use the pole mount accessory (MX-D22-OPT-MH) in conjunction with the wall mount (MX-D22-OPT-WH) as a sturdy camera carrier, which is then mounted to the extension pole. MOBOTIX recommends not to attach the camera directly to metal carriers, especially when mounting the camera outdoors or when the ambient temperature varies greatly. As an additional measure to protect the camera against condensation, you should use either the On-Wall set (MX-D22-OPT-AP) or the Wall Mount (MX-D22-OPT-WH).
